Pipely documentation

Run it, point it at your own accounts, ship it under your own brand. Written against version 1.0.0 of the download you get on CodeCanyon.

$19 on CodeCanyon
On this page
01

Interface tour

Every screen below is the running application against the demo workspace that pnpm db:seed builds — the same data you will have about ten minutes after cloning. Nothing here is a mockup or a render.

The staff web app

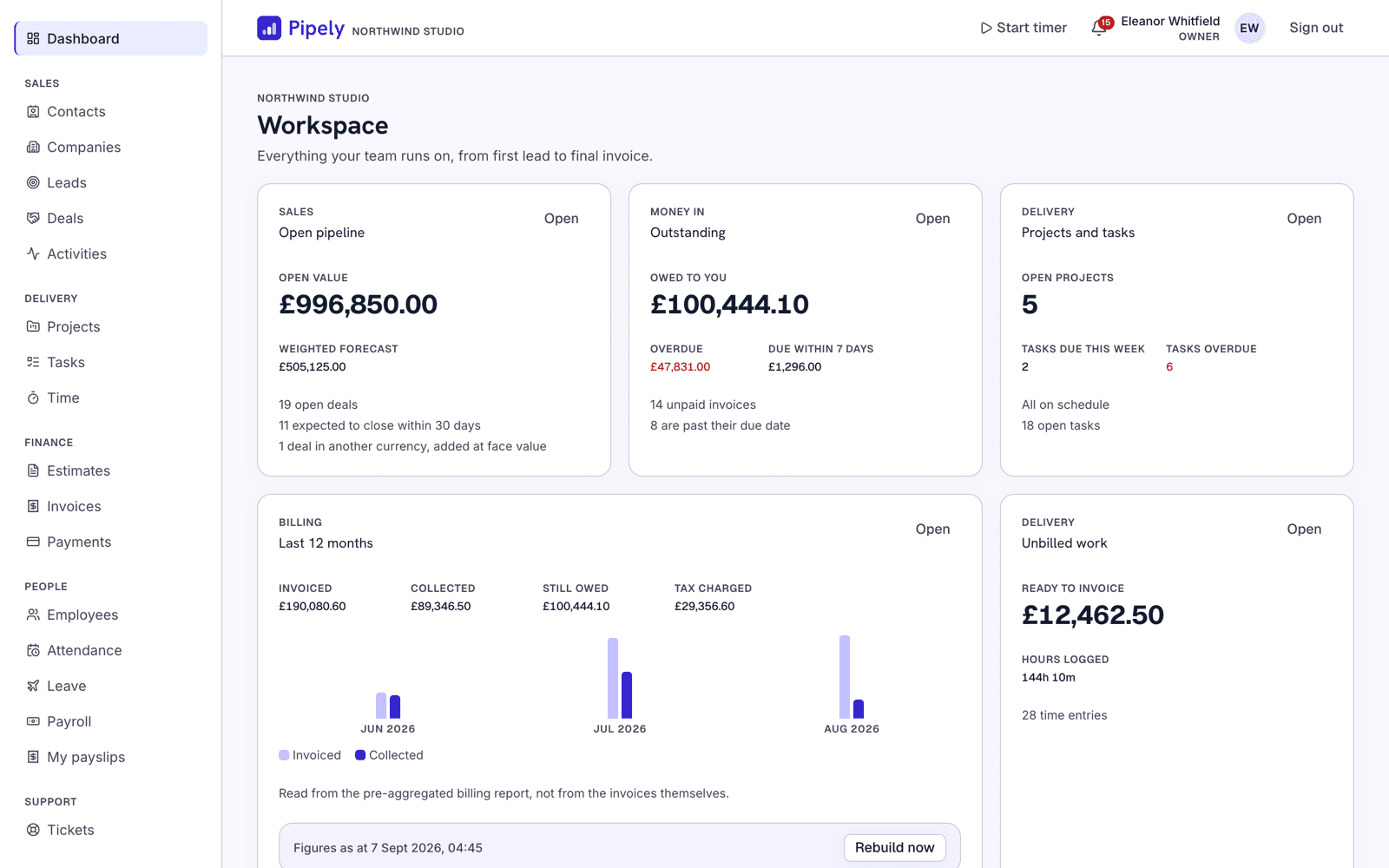

The Pipely workspace overview, showing pipeline, invoice, project and support figures for the signed-in workspace
Workspace overviewWhere a signed-in staff member lands. Every card is gated twice — by the caller’s own permissions and by the modules the workspace’s plan includes — so a colleague on a narrower role sees a shorter page rather than a wall of refusals.

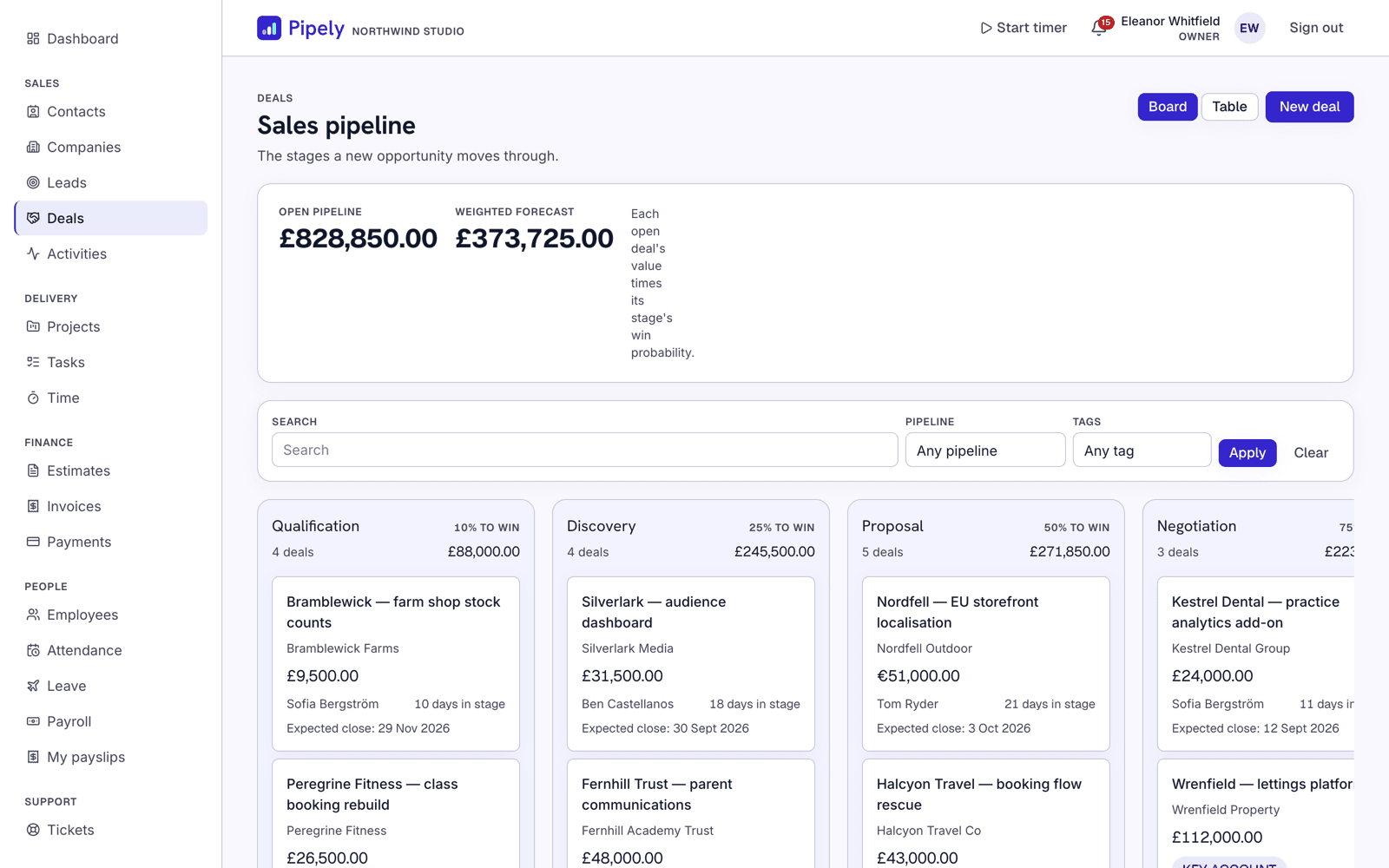

The sales pipeline as a drag-and-drop kanban board with five stages
Sales pipelineDeals on a drag-and-drop board, with open pipeline and a weighted forecast above it. Stages, their order and their win probabilities are per workspace.

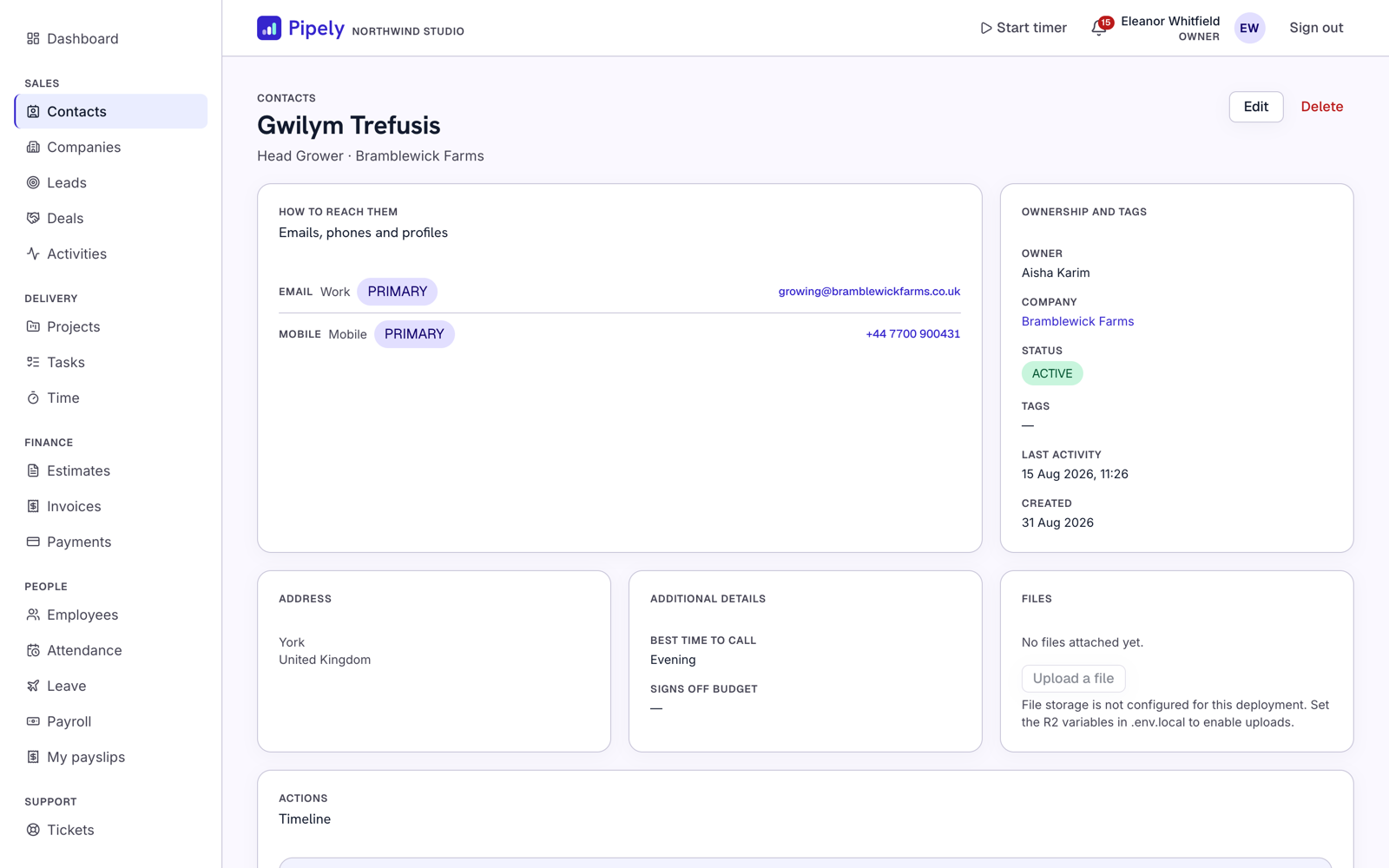

A contact record with its unified activity timeline
Contact recordOne timeline carrying calls, meetings, notes, emails and the deals a person is attached to. Tagging, custom fields, attachments and the audit log are built once and available on every module — this screen is not special.

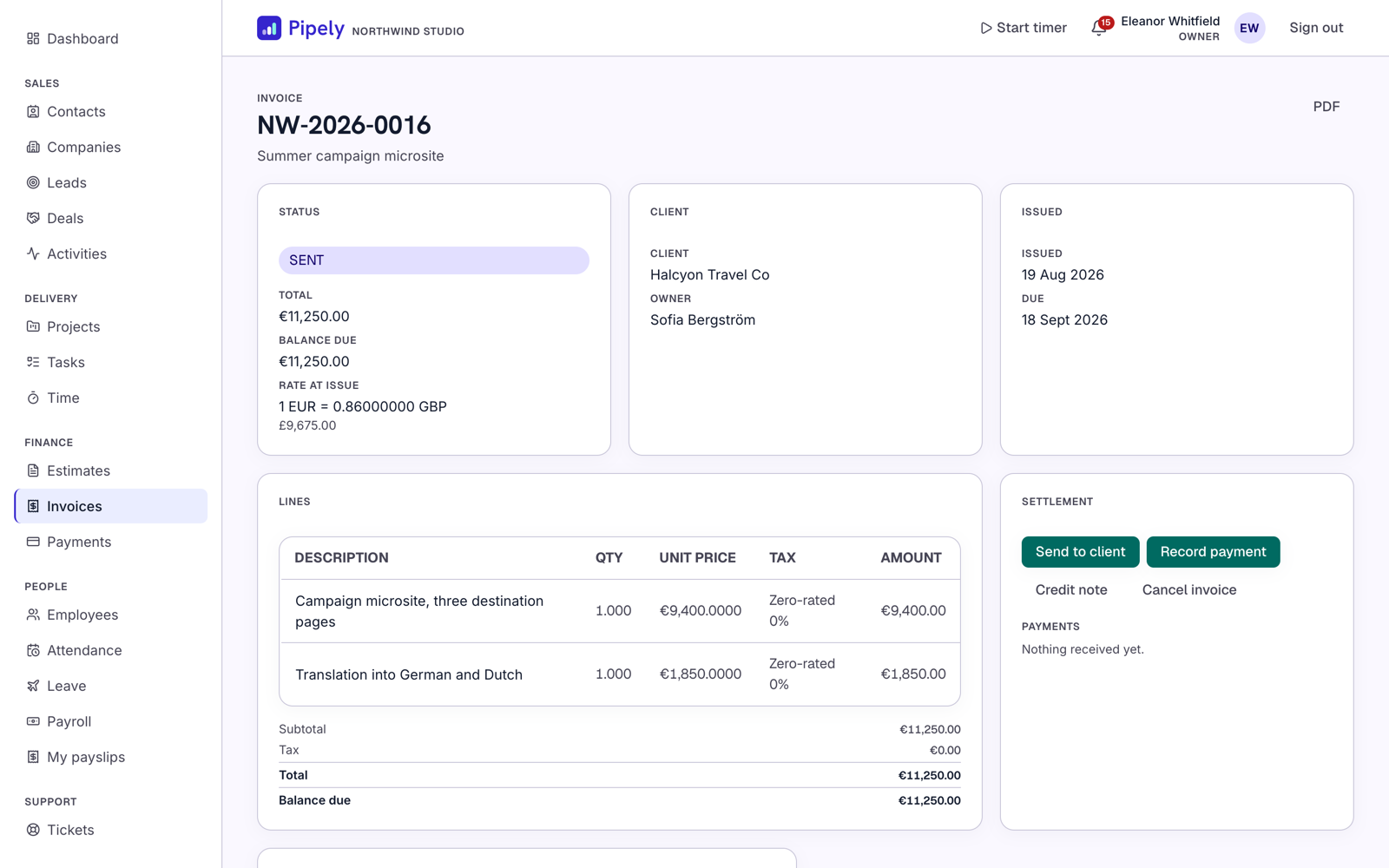

An invoice with line items, tax, a recorded payment and its receipt
Invoice and settlementLine items, tax, the payment that settled it and the receipt that went out. The PDF is rendered server-side — there is no headless browser to install and nothing to time out under load.

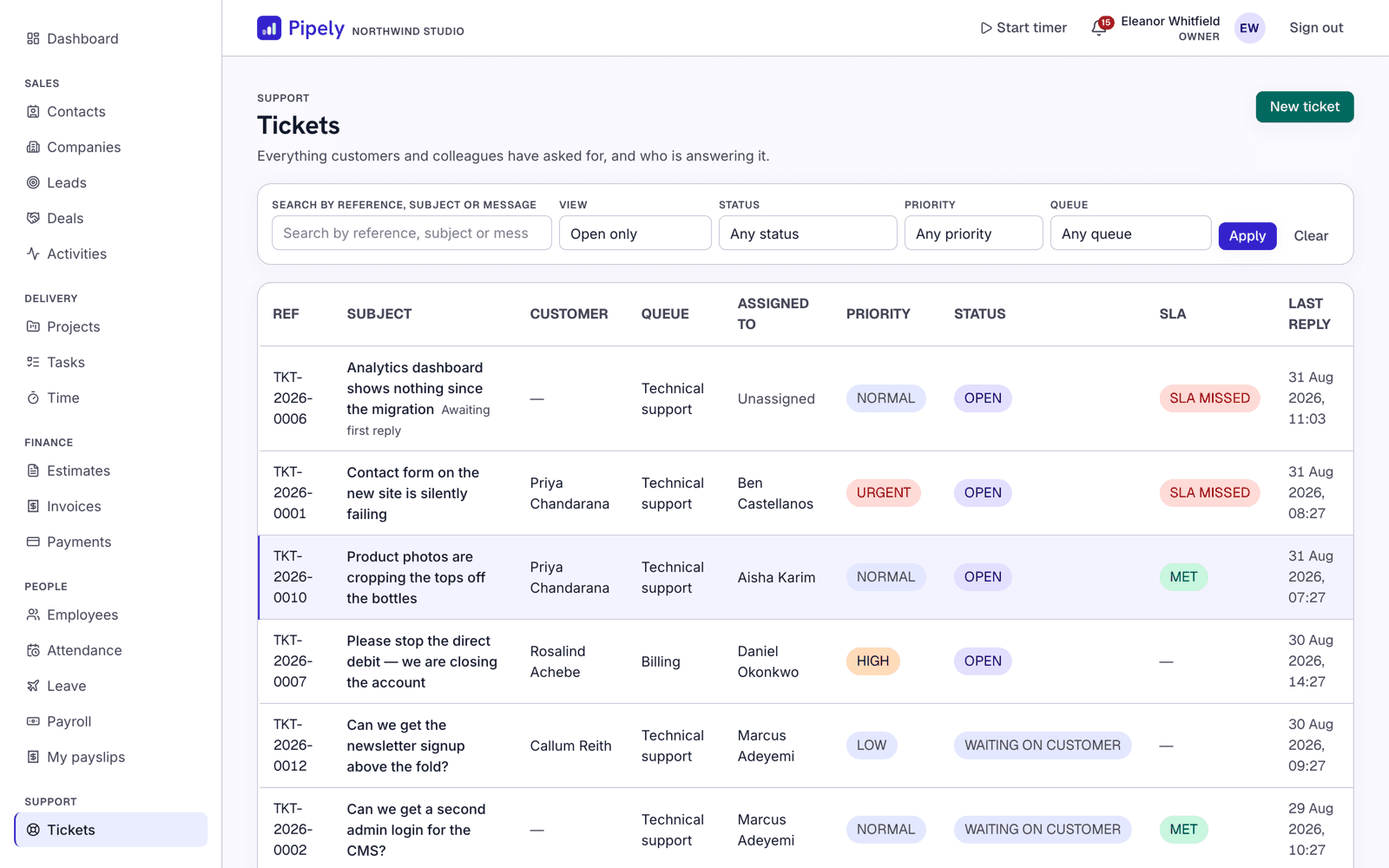

The support desk ticket queue with status, priority and SLA state
Support deskQueues with manual, least-busy and round-robin assignment, threaded replies with internal notes the customer never sees, and SLA state computed on read — so a timer is never stale, even with nothing scheduled running.

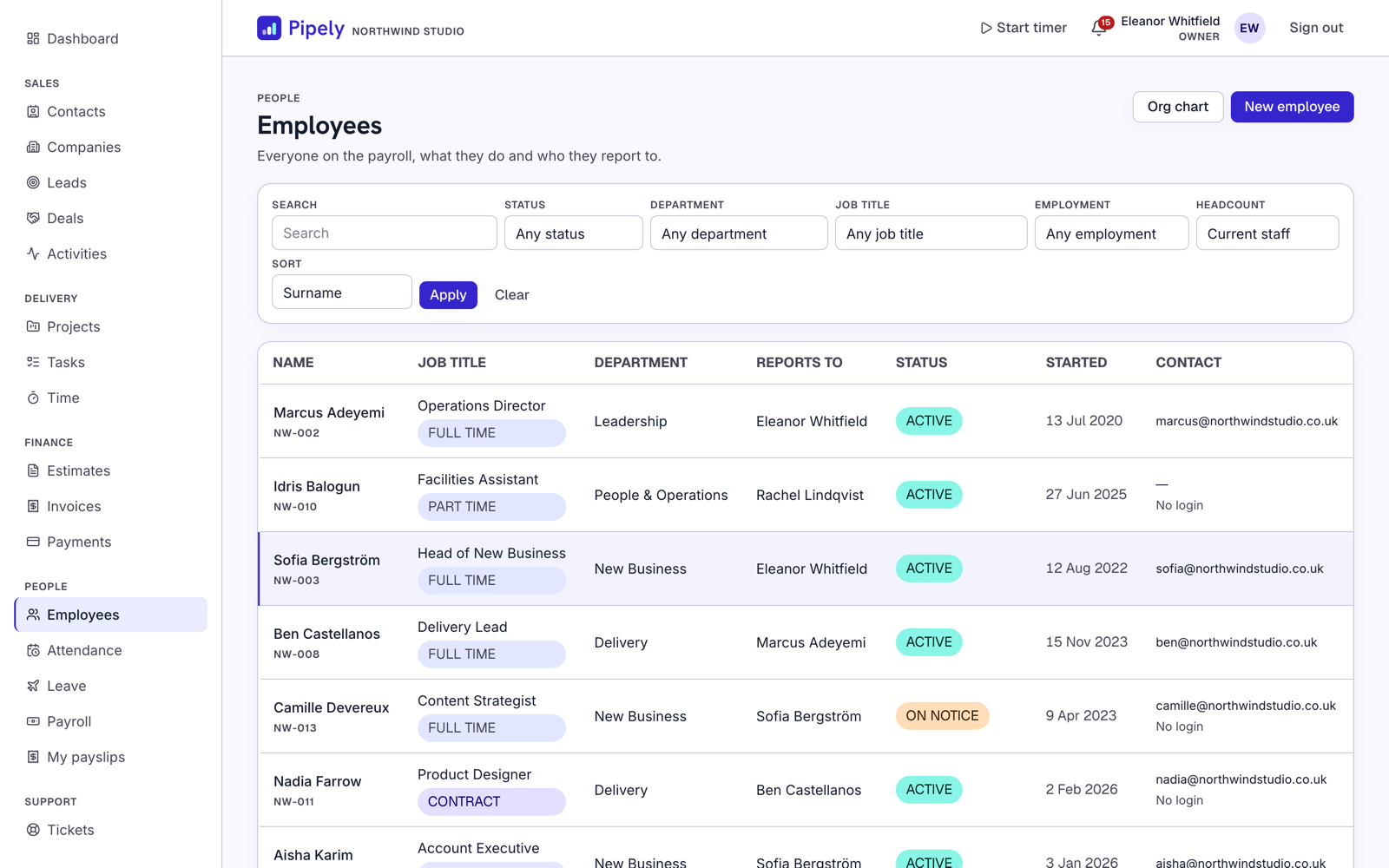

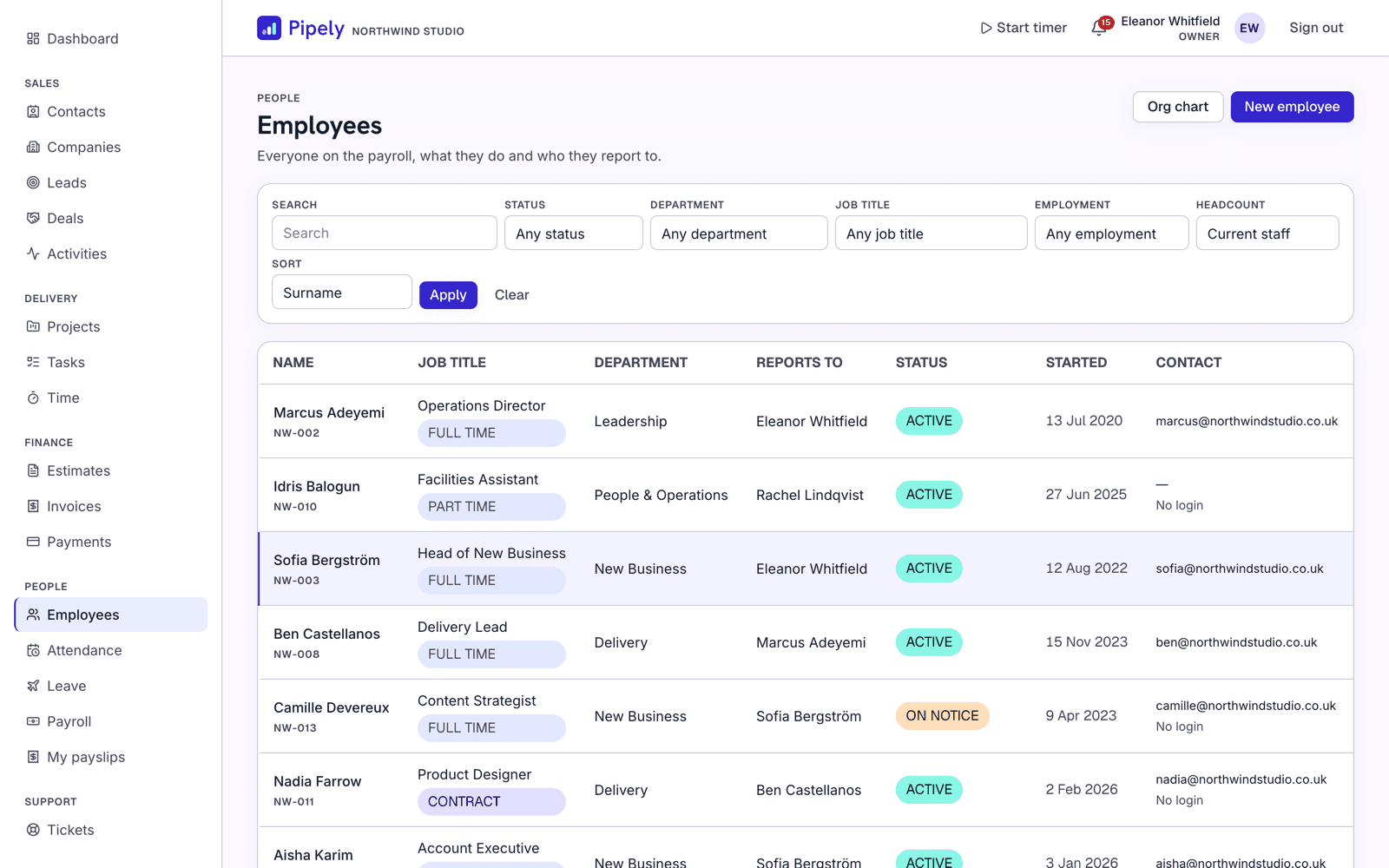

The employee directory with departments and reporting lines
PeopleEmployees, departments, designations and the reporting line the org chart is drawn from. Attendance, leave and payroll hang off the same records.

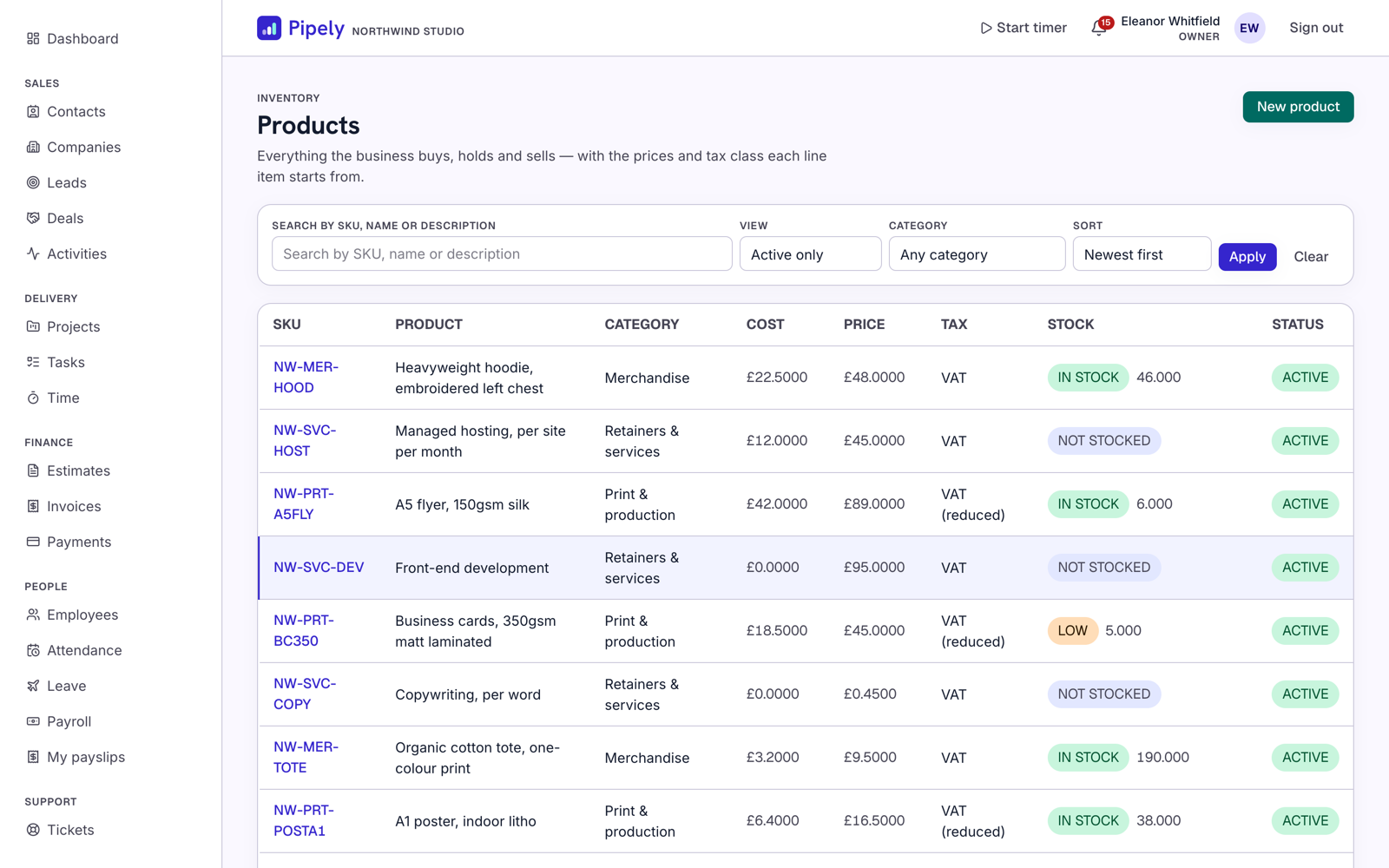

The product catalogue with SKUs, cost and sale price, tax class and stock level
InventoryProducts with SKUs, cost and sale price, tax class and category. The level beside each one is a SUM over an immutable movement ledger, never a stored counter that can drift out of step with its own history — and it moves on its own when an invoice is paid.

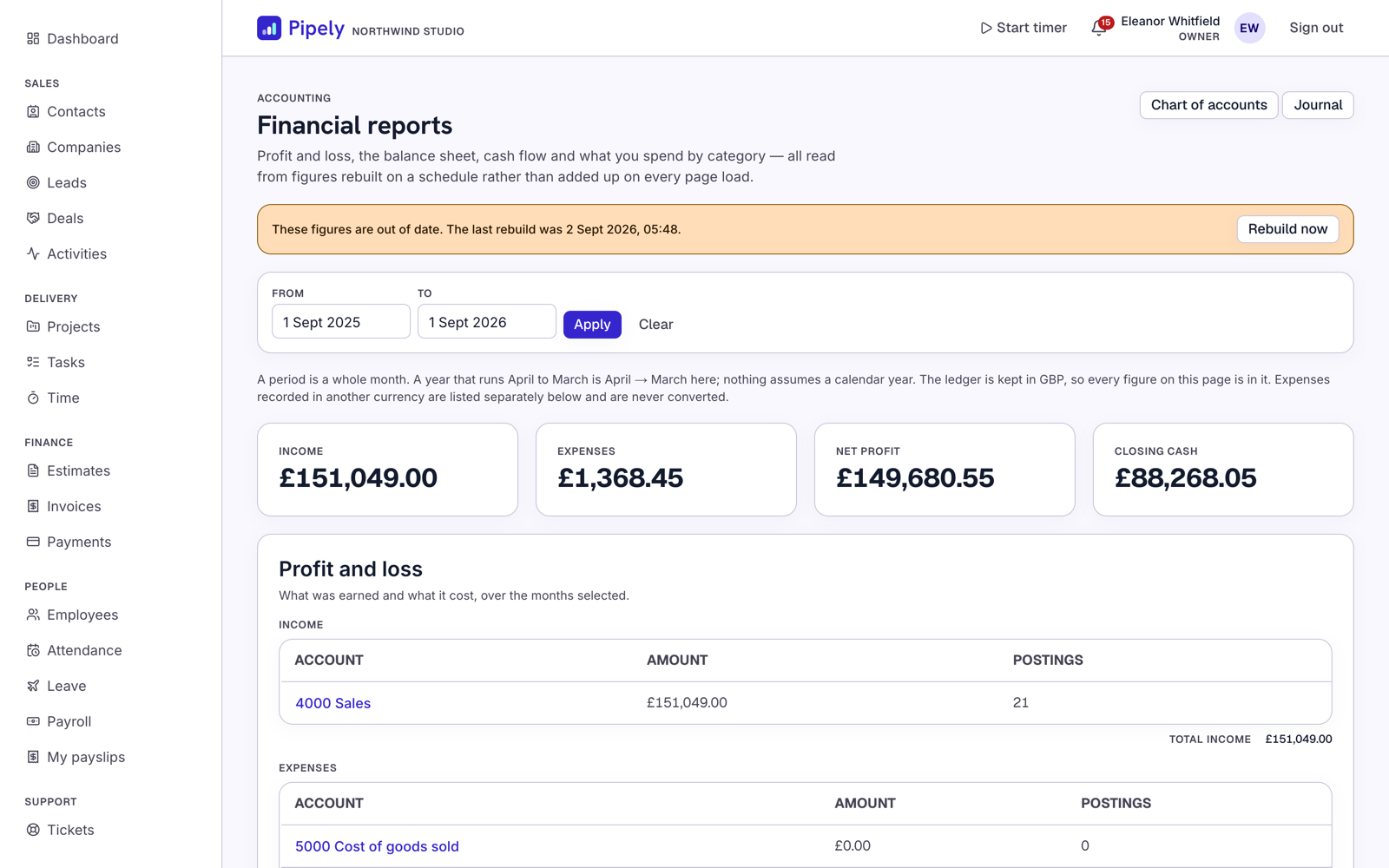

Profit and loss, with the freshness stamp visible
Financial reportsProfit and loss, balance sheet, cash flow, expense by category and an account ledger — all read from figures rebuilt on a schedule rather than aggregated over full history on every page load, and each one states when it was last built.

The client portal

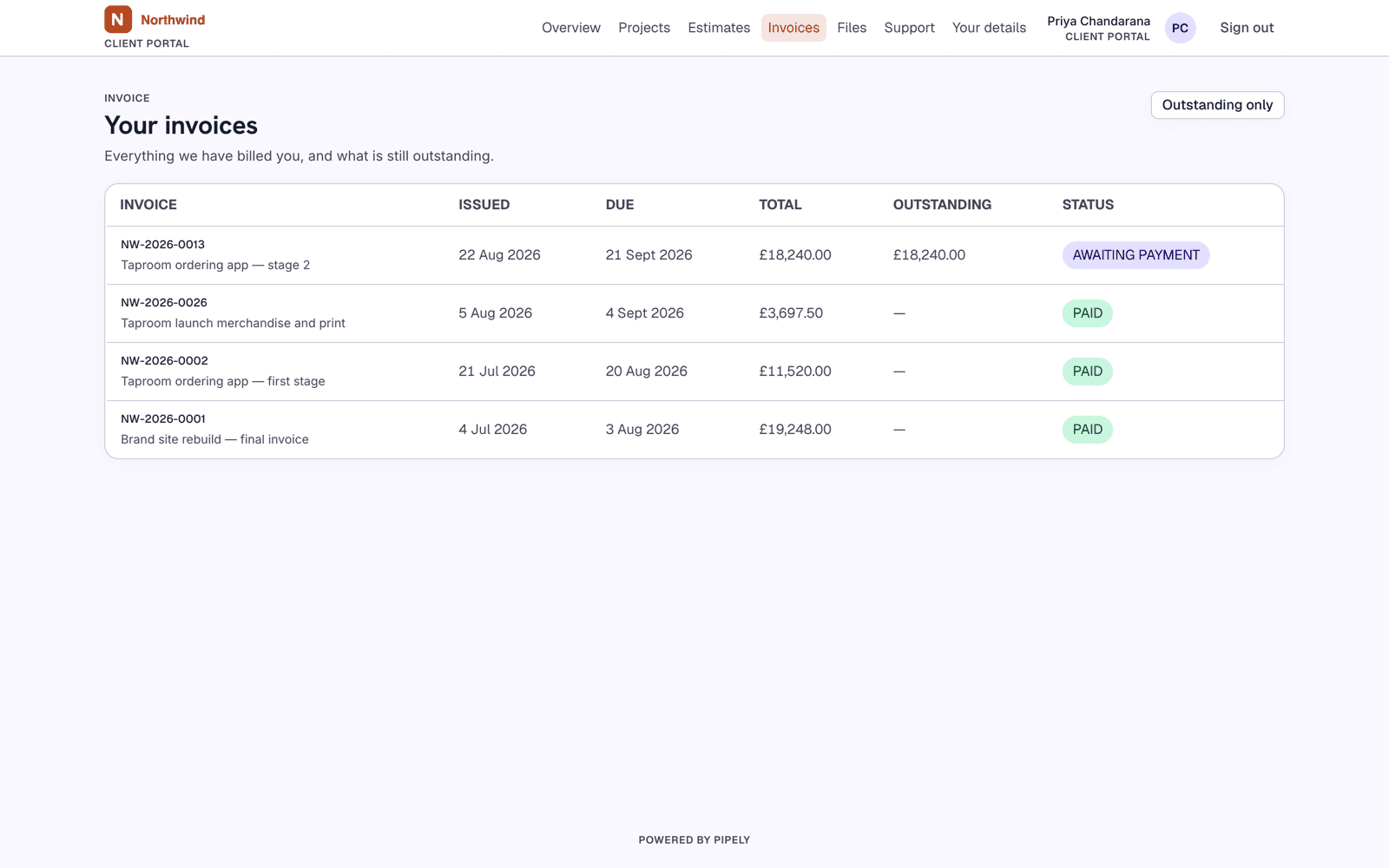

The client portal, white-labelled, showing a customer’s invoices
Your customer’s own sign-inA separate surface with its own session type, white-labelled with the workspace’s colour and logo. The customer accepts an estimate, pays the invoice, downloads the receipt and raises a support ticket without a member of staff. Two customers of one workspace are isolated from each other by a fourth predicate on top of the three that separate workspaces.

The Flutter app

Android and iOS, against the same /api/v1 your own integrations would use. All seven modules are reachable and operable — it is not a viewer.

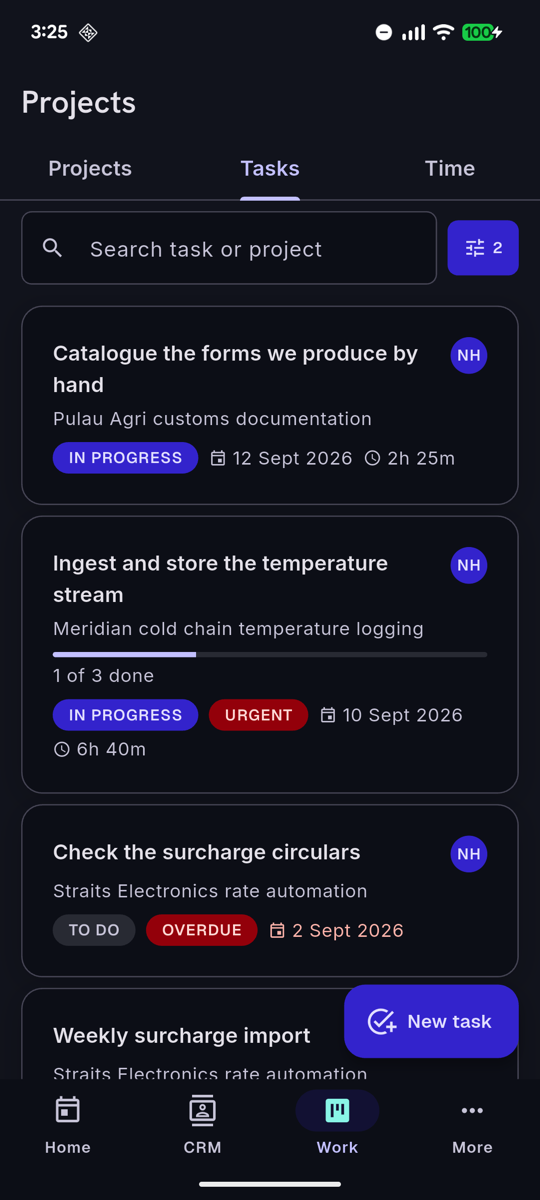

The task list in the Pipely Flutter app
WorkProjects, tasks and time, with filters and progress.

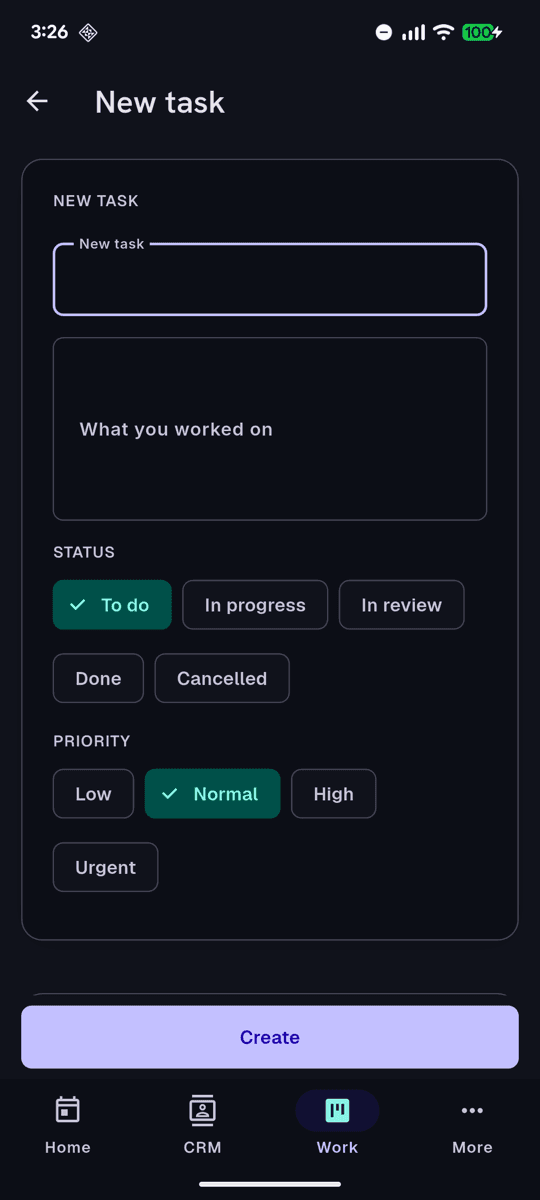

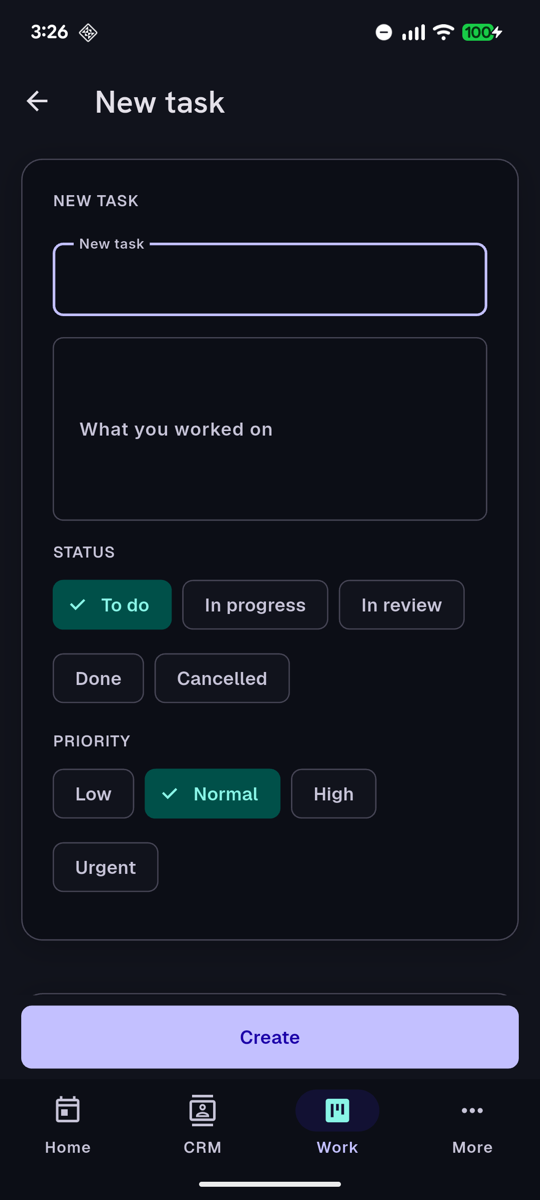

Creating a task from the Flutter app
Create, not just readEvery module can be operated from the phone.

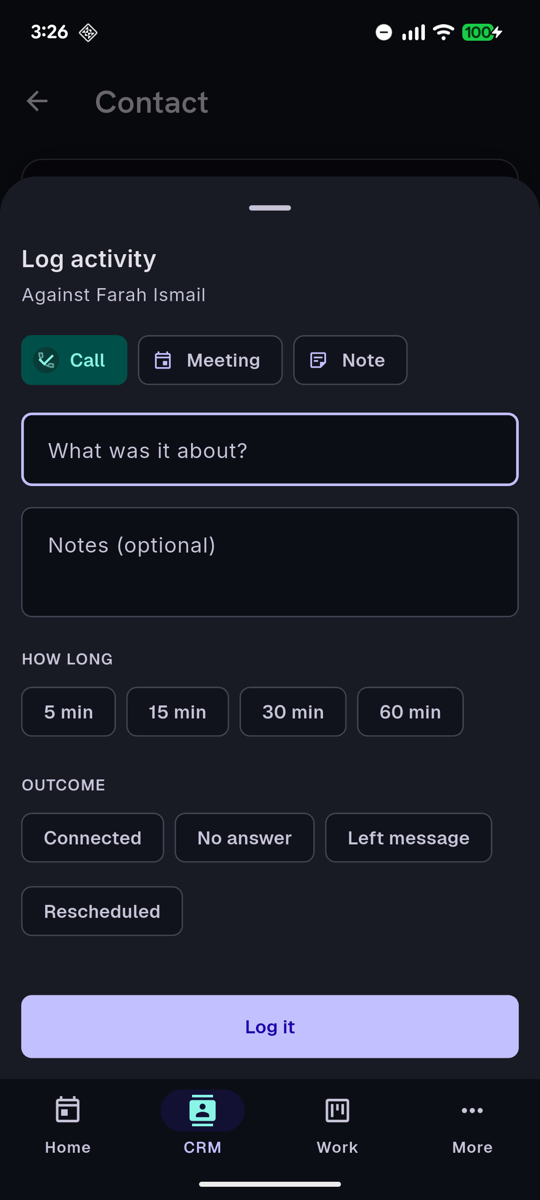

Logging a call against a contact from the Flutter app
Log a callOne of the four writes that queue offline and sync later.

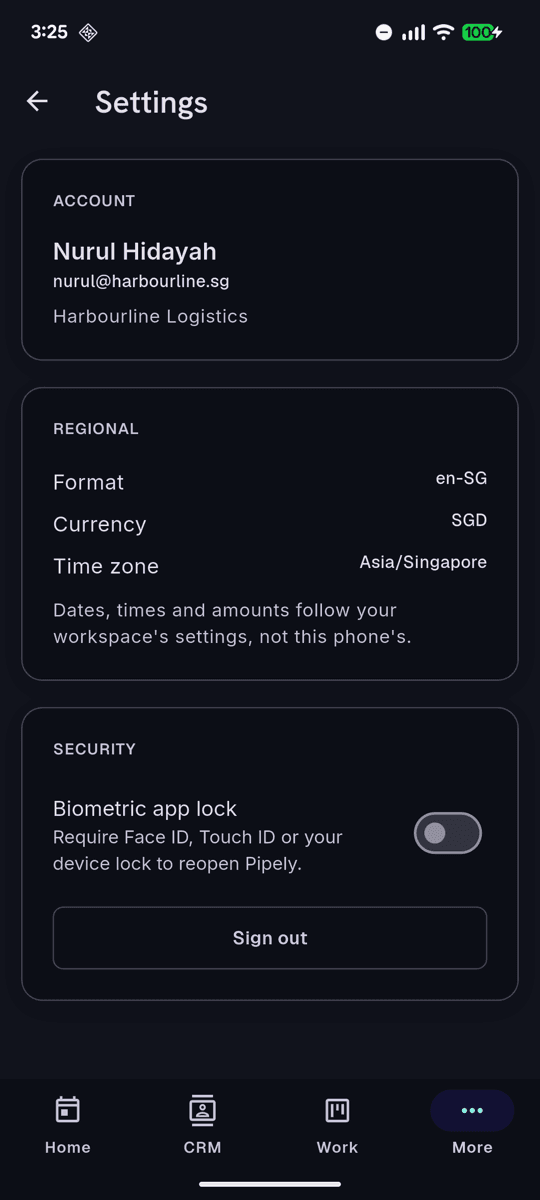

Flutter app settings showing biometric lock and the workspace’s regional formatting
Biometric lockDates, times and money follow the workspace, never the phone.
Note
On the offline scope. Contacts, deals, tasks and today’s schedule are cached for reading, and exactly four writes queue when there is no signal: attendance clock-in, task status, time entries and activity logging. Invoices, stock and the ledger are online-only on purpose — a figure cached on a phone is a wrong number waiting to be read, and the app says so rather than showing you something stale.
02

Overview

Pipely is a complete business-operations platform sold as source code. You install it once and either run it for your own company, or give each of your client companies an isolated workspace of their own and resell access.

One Next.js application serves three surfaces, routed by hostname. A Flutter app talks to the same backend through /api/v1.

SurfaceHostWho it is for
Marketing
pipely.app
Public site and signup funnel
Staff app
acme.pipely.app
A tenant’s own employees
Client portal
acme.pipely.app/portal
That tenant’s customers
Mobile app
via /api/v1
Tenant staff, Android and iOS

Which surface a request gets is decided in apps/web/src/proxy.ts. A tenant can also be reached on its own domain once you point DNS at the app.

What makes it different

  • A modern stack. Next.js App Router, React Server Components, TypeScript in strict mode with zero errors at build, Drizzle ORM, PostgreSQL. No jQuery, no Bootstrap, no mysqli_query.
  • A modern deploy story. Push to Vercel, or docker compose up -d on your own box. No cPanel, no FTP.
  • Genuine multi-tenancy. Not a company_id column and good intentions — PostgreSQL row-level security, so a query that forgets its tenant predicate returns nothing rather than everything.
  • A real mobile app. All seven modules operable from the phone, with a deliberately narrow offline cache and sync queue.
Warning
Read this before you buy or build on it. Pipely ships the multi-tenant application layer, not a subscription business. Plans exist and gate which modules a tenant sees, and signup provisions a real tenant — but there is no subscription lifecycle: no trial expiry, no dunning, no seat or storage enforcement. If you intend to resell workspaces on a subscription, that part is yours to build. Known limitations names every such gap.
03

What’s included

  • Full source for every surface — the Next.js application (marketing site, staff app, client portal, and the (platform) route group) and the Flutter app, in one pnpm workspace.
  • The database schema — 106 tenant-scoped tables plus platform and identity tables, with 51 SQL migrations in apps/web/drizzle/, including every row-level security policy.
  • Demo seed data — pnpm db:seed builds two complete workspaces with hand-written, realistic data across all seven modules. No lorem ipsum.
  • The design system — colour, type and radius tokens in apps/web/src/app/globals.css and a matching Flutter theme extension, consumed by every component.
  • The branding pipeline — one master SVG mark in assets/brand/ and a script that derives every launcher icon and favicon from it.
  • Test suites — unit tests plus a 2,018-test cross-tenant isolation suite that runs against a real database.
  • Docker — docker-compose.yml and apps/web/Dockerfile for a one-command self-host path.
  • 6 months of item support per the CodeCanyon standard.
Note
Every third-party dependency is permissively licensed — MIT, MIT-0, Apache-2.0, BSD or ISC — and redistributable as part of this source. Fonts are under the SIL Open Font License. Nothing in the stack restricts commercial redistribution.
04

Features

Seven modules, on web and mobile

Every module below is reachable and operable from both the staff web app and the Flutter app — not a viewer, and not a stub screen.

CRM
Contacts, companies, contact channels, leads, deals, pipelines with a drag-and-drop kanban, activities, a unified timeline, a public web-to-lead form, SMTP and IMAP email, automation rules, and six reports
Projects
Projects, tasks, milestones, a gantt chart drawn in SVG with no charting dependency, threaded comments, and time tracking that becomes an invoice line
Invoicing
Estimates with accept/decline, invoices, line items, tax rates, recurring invoices, server-rendered PDFs, Stripe payments with signed webhooks, refunds, credit notes and receipts
HRM
Employees, departments, designations, employment details, an org chart, employee documents, attendance with optional geolocation, leave with an approval flow, a payroll engine, payslips and HR reports
Support
Ticket queues with assignment rules, threaded replies with internal notes, SLA targets computed on read so they are never stale, canned responses, email-to-ticket ingestion, and customer submission from the portal
Inventory
Products with SKUs and images, categories, warehouses, an immutable stock ledger, suppliers, purchase orders with a receive flow, and stock that moves when an invoice is paid
Accounting
A chart of accounts, a double-entry journal, expenses with receipts and client rebilling, vendor bills, automatic posting from five sources, and five reports

Cross-cutting systems

Built once and available to every module, rather than reimplemented per module:

  • Custom fields — definable per entity type, validated server-side.
  • Tagging — one tag vocabulary across modules.
  • Audit log — every create, update and delete on a tenant entity writes a row with actor, timestamp, entity and a JSON diff. Secrets are redacted in the diff.
  • File attachments — presigned direct upload to R2, magic-byte validation after the fact, signed expiring downloads, and a second permission layer so a caller cannot attach to or read files on a record they may not open.
  • Notifications — in-app, with a subject/destination pair so a notification about a milestone opens the project that renders it.
  • Comments — threaded, generic, permission-filtered per subject.

The client portal

Your customer signs in at /portal/login, sees their projects and files, accepts an estimate, pays the resulting invoice, downloads the receipt and raises a support ticket — all without a member of staff. White-labelled with the tenant’s colour and logo, with an optional “powered by” credit.

The portal never owns a second copy of a rule. A client accepting an estimate runs the same state machine a staff member does; paying runs the same payment-link function behind the staff “Payment link” button.

Security and access control

  • Permissions are module.action strings — deals.create, payroll.view_all — each grant carrying a scope of own, team or all. Scope filtering happens inside the same query wrapper as tenant filtering, so the two cannot drift apart.
  • Seven roles are seeded into every tenant — Owner, Administrator, Manager, Sales, Accountant, HR Manager, Employee — and tenants edit them freely.
  • Auth.js v5 with credentials and Argon2id hashing, JWT sessions, and optional Google / Microsoft Entra OAuth.
  • Two credential providers against two tables — staff (users) and portal clients (portal_users) — because emails are unique per tenant, not globally.
  • Rate limiting on sign-in, signup, token refresh, the public web-to-lead endpoint and payment webhooks.
  • Zod validation on every mutation, server-side, on both the server-action and the /api/v1 path — they share one guard, so validation is written once.

The API

/api/v1 route handlers serve the Flutter app and third-party integrations:

  • Bearer + refresh auth. Opaque tokens stored as SHA-256, rotated on every refresh, one session row per device. A replayed refresh token revokes the whole family.
  • Idempotency-Key on every mutation. Handled once in the shared route factory, so every endpoint inherits it. A POST or PATCH carrying the header executes at most once per tenant, actor, endpoint and key; a replay returns the original response with Idempotent-Replayed: true.
  • GET /api/v1/me is the reference endpoint.
05

Architecture

Repository layout

pipely/
pipely/
├─ apps/
│  ├─ web/                     Next.js — all four route groups
│  │  ├─ drizzle/              51 SQL migrations, including the RLS policies
│  │  ├─ eslint-rules/         Project-specific ESLint rules
│  │  ├─ messages/             Translation catalogue (English)
│  │  ├─ Dockerfile            Production image
│  │  └─ src/
│  │     ├─ app/               Route groups: (admin) (portal) (platform) (marketing)
│  │     ├─ auth/              Auth.js config, Argon2id, RBAC and can()
│  │     ├─ components/        UI components on the design tokens
│  │     ├─ db/                Drizzle schema, migrations runner and the seed
│  │     ├─ inngest/           Background job client, functions and cron dispatchers
│  │     ├─ lib/tenancy/       tenantDb(), scope filtering, audit, host resolution
│  │     ├─ lib/validation/    The shared Zod + permission guard
│  │     ├─ server/            One folder per module: the operations
│  │     └─ proxy.ts           Host → surface routing and tenant resolution
│  └─ mobile/                  Flutter app — Riverpod, GoRouter, Drift, Dio
├─ assets/brand/               The master SVG mark
├─ docker-compose.yml
└─ .env.example

Stack

LayerChoiceVersion
Web framework
Next.js App Router, RSC by default
16.3.1
UI runtime
React
19.2.8
Language
TypeScript, strict: true
5.9.3
Styling
Tailwind CSS + Radix primitives
4.3.3
Database
PostgreSQL 15+
Neon, or any Postgres
ORM
Drizzle
0.45.2
Auth
Auth.js v5 + Argon2id
5.0.0-beta.32
Validation
Zod
4.4.3
Background jobs
Inngest
4.18.1
Payments
Stripe
22.5.0
Email
nodemailer over SMTP
8.0.11
i18n
next-intl (web), ARB (Flutter)
4.13.6
Files
Cloudflare R2 via the S3 API
AWS SDK 3.1111.0
Mobile
Flutter + Riverpod 2.x + GoRouter + freezed + Dio + Drift
SDK ^3.12.2
Runtime
Node.js
>=22.14.0
Package manager
pnpm
>=10

Tenant isolation — three layers, and a fourth in the portal

Every tenant-owned table carries a non-nullable tenant_id. There are 106 of them, and three independent mechanisms keep one tenant’s data away from another’s:

  1. 01

    The query wrapper.

    All tenant reads and writes go through tenantDb(tenantId), which adds the tenant predicate, applies the caller’s permission scope and writes the audit row. Importing the raw database client outside a short declared allowlist fails pnpm lint — the rule is in apps/web/eslint-rules/no-raw-db.js.
  2. 02

    Row-level security.

    Every tenant table has a PostgreSQL policy keyed to a session variable the wrapper sets per transaction. If a query somehow bypasses layer 1, the database still returns nothing.
  3. 03

    The session.

    tenantId and the user’s role come from the authenticated session, never from a URL segment or request body. Changing an id in a URL cannot reach another tenant, because the id in the URL is never trusted.

The client portal adds a fourth layer, because two customers of one tenant also need isolating from each other: portalDb(audience) narrows every read to the signed-in client’s own company, and a record the tenant withheld — an internal task, a private file, an internal comment — stays hidden.

Design invariants

These hold throughout the codebase. Keeping them is what makes a change safe:

  • Every tenant query goes through tenantDb(); raw db is lint-enforced to a small allowlist.
  • Every mutation validates with Zod, server-side, before it touches the database.
  • Every create, update and delete on a tenant entity writes an audit row.
  • Cursor pagination on every list view — no offset, no unbounded select.
  • A composite (tenant_id, <filter column>) index for every filterable column.
  • Reports read pre-aggregated tables refreshed on a schedule, and every report screen states when it was last built.
  • No hardcoded user-facing strings — they live in the translation catalogue on both clients.
  • No secret in any client bundle or APK.
  • Currency and date formatting follow the tenant’s configured locale and timezone, not the device’s or the server’s.
06

Setup and deployment

Requirements

ToolVersionWhy
Node.js
22.14 or newer
The web app
pnpm
10 or newer
Workspace package manager — corepack enable installs it
PostgreSQL
15 or newer
Any Postgres. Neon has a free tier
Docker
optional
For the one-command self-host path
Flutter
stable, SDK ^3.12.2
Only if you are building the mobile app

Option 1 — local development

terminal
pnpm install

cp .env.example .env
# Set AUTH_SECRET (openssl rand -base64 48) and DATABASE_URL.

pnpm db:migrate     # create the schema and the RLS policies
pnpm db:seed        # two demo tenants with realistic data
pnpm dev

Then open:

  • http://pipely.localhost:3000 — marketing site
  • http://northwind.pipely.localhost:3000 — a tenant’s staff app
  • http://northwind.pipely.localhost:3000/portal — that tenant’s client portal
Note
Every current browser resolves *.localhost to 127.0.0.1, so there is nothing to add to /etc/hosts. The seed prints every account it created and their shared password.

The two demo tenants are deliberately different. Northwind is on the Scale plan with every module switched on; Harbourline is on Starter with three. That is not decoration — it is how you see the plan gate actually gating, because a module a plan excludes disappears from navigation rather than showing a locked screen.

Option 2 — Docker

terminal
cp .env.example .env
# Set AUTH_SECRET, and APP_APEX_DOMAIN to your real domain.

docker compose up -d

PostgreSQL and the web app come up together. Apply migrations as described at the bottom of docker-compose.yml.

Warning

APP_APEX_DOMAIN is baked at build time. It is read by next.config.ts to build serverActions.allowedOrigins, which Next serialises into the build output. Setting it afterwards does not change it.

Build without it and the image trusts pipely.localhost; every page then renders on your real domain and every form fails as a cross-origin request — which looks like anything except a missing variable. Set it before pnpm build, pass it to docker build with --build-arg APP_APEX_DOMAIN=... (docker-compose.yml already does), and rebuild rather than restart when you change your domain.

Option 3 — Vercel

Pipely runs on Vercel with no code changes.

  1. 01
    Import the repository and set Root Directory to apps/web. This is a pnpm workspace — the app is not at the repository root and Vercel needs telling. Framework, package manager and Node version all detect correctly from there.
  2. 02
    Add a wildcard domain. Add both yourdomain.com and *.yourdomain.com in the project’s Domains tab. A wildcard certificate is issued for you, but only if Vercel is running the DNS. Without the wildcard, no tenant is reachable — every workspace is a subdomain and the app decides which surface you get from the Host header.
  3. 03
    Set the environment variables from Integrations matrix. APP_APEX_DOMAIN must be set before the first build, per the warning above.
  4. 04
    Run migrations from your machine, not from the build — see Database setup.
  5. 05
    Create an Inngest app pointed at https://<your-host>/api/inngest and set its two keys. See Scheduled jobs.

apps/web/vercel.json sets two things deliberately. fluid declares Fluid compute, which gives every function a 300-second default duration — what /api/inngest needs when a report rebuild runs — and lets one instance serve concurrent requests, which is what makes a module-scoped connection pool sensible. regions pins functions to iad1; change it to the region your database is in, because every request talks to Postgres several times.

Build commands

pnpm dev
Development server on port 3000
pnpm build
Production build — fails on any TypeScript error
pnpm start
Serve the production build
pnpm typecheck
tsc --noEmit, strict mode
pnpm lint
ESLint, including this project’s own rules
pnpm test
Unit tests. No database needed
pnpm test:isolation
The cross-tenant isolation suite. Needs a database
pnpm test:ci
Both of the above — the gate to run before shipping a change
07

Database setup

  1. 01

    Provision

    Any PostgreSQL 15 or newer. On Neon, create a project and use the pooled connection string — the host contains -pooler. Self-hosting, docker-compose.yml brings up a Postgres service and sets the URL for you.
  2. 02

    Set the connection

    .env
    DATABASE_URL=postgresql://user:password@host:5432/pipely
    DATABASE_POOL_MAX=10
  3. 03

    Migrate

    terminal
    pnpm db:migrate

    This applies all 51 migrations in order, creating the schema, the row-level security policies and the pipely_app role.

  4. 04

    Seed (optional)

    terminal
    pnpm db:seed

    Creates the permission catalogue, the plans, two complete demo tenants with data across all seven modules, their staff and portal logins, and a super-admin. Every account gets the password in SEED_PASSWORD (default 123456).

    Never point the seed at a production database. For a real deployment, skip this step and use the signup flow on the apex domain to provision your first tenant, which creates the tenant, its seven default roles with grants, the owner account and the first audit row in one transaction.

Warning
Do not run migrations from a build step. A build can run concurrently with itself and on a rollback; migrations must be applied once, deliberately, from your own machine or a one-off job pointed at the production database.

The two database roles — the step most often skipped

Pipely expects two connection strings:

VariableRoleUsed by
DATABASE_URL
Application role. Does not own the tables, so RLS policies apply to it
Everything the application does
DATABASE_URL_OWNER
Owns the tables, therefore bypasses RLS
Migrations, tenant provisioning, super-admin reporting, billing webhooks
Warning
Leaving DATABASE_URL_OWNER unset still deploys, still works, and silently turns row-level security off — because the app then connects as the owner, and PostgreSQL exempts a table’s owner from its policies. Your only remaining isolation is the query wrapper. That is fine locally and not fine in production.

The migration creates pipely_app as NOLOGIN on purpose — a migration must never create a reachable account with a guessable secret — so you have to enable it deliberately:

sql
ALTER ROLE pipely_app WITH LOGIN PASSWORD '<a long random string>';

Then put pipely_app in DATABASE_URL and the owner in DATABASE_URL_OWNER. pnpm test:isolation reports which of the two postures you are running, on every run.

08

Integrations matrix

Two variables are required. Everything else has a working default or disables one feature until configured — the application starts either way.

Required

DATABASE_URLRequired
The application’s PostgreSQL connection
AUTH_SECRETRequired
Signs and encrypts session cookies. At least 32 characters — openssl rand -base64 48. Changing it signs everyone out
APP_APEX_DOMAINProduction
Bare apex domain, no scheme, no port. Baked at build time — see Setup and deployment
APP_PLATFORM_HOSTProduction
Host of the super-admin console. Must not collide with a tenant slug

Optional — and what each unlocks

IntegrationUnlocksEnvironment variablesBehaviour when unset
Cloudflare R2
File attachments on every module, employee documents, expense receipts, product images
R2_ACCOUNT_ID, R2_ACCESS_KEY_ID, R2_SECRET_ACCESS_KEY, R2_BUCKET, R2_SIGNED_URL_TTL_SECONDS
Attachment panels render empty and every downloadUrl is null. Nothing throws on a read; an upload is refused with a message naming the four variables
SMTP
Outbound email — signup, password reset, invoices, receipts, ticket acknowledgements
SMTP_HOST, SMTP_PORT, SMTP_SECURE, SMTP_USER, SMTP_PASSWORD, SMTP_FROM
Mail is queued to the outbox and never dispatched. These are the platform defaults; each tenant can configure its own SMTP in company settings, which takes precedence
Inngest
Everything scheduled — recurring invoices, overdue chasing, inbound mail polling, SLA breach notices, report pre-aggregates
INNGEST_EVENT_KEY, INNGEST_SIGNING_KEY, and four INNGEST_CRON_* cadences
Nothing scheduled runs. No data is wrong — every affected screen has a manual button and every report states its freshness. See Scheduled jobs
Encryption key
Storing a tenant’s SMTP or IMAP password, and its payment gateway credentials
ENCRYPTION_KEY — 32 bytes base64, openssl rand -base64 32
Those operations are refused. The product never falls back to storing a credential in the clear. Everything else works normally
Google OAuth
“Sign in with Google” on the staff sign-in screen
AUTH_GOOGLE_ID, AUTH_GOOGLE_SECRET
The button does not appear. OAuth only matches a user who already exists in the resolved tenant, by email; it never creates an account. Note there is no invite screen — see Known limitations — so today that means the owner created at signup, or a row you added yourself
Microsoft Entra
“Sign in with Microsoft”
AUTH_MICROSOFT_ENTRA_ID_ID, …_SECRET, …_ISSUER
The button does not appear
Stripe
Card payments on invoices, from both the staff app and the client portal
None — configured per tenant in the app UI
The Pay button is not offered. Invoices still issue, and payments can be recorded manually. See Payments
Firebase Cloud Messaging
Intended for mobile push. The server-side sender is not implemented — see Push notifications
FCM_SERVICE_ACCOUNT_JSON
No push is delivered whether it is set or not. In-app notifications work normally
Note
There is no required paid service and no forced signup anywhere in the stack. Email is plain SMTP, so you can point it at anything you already have.
09

Third-party services and their costs

Warning

Pipely is source code, not a hosted service. Your purchase buys the code and item support. It does not include hosting, a database, any third-party account, or any credit or balance with the providers below.

Every service Pipely can talk to is operated by a third party and billed to you by that third party, under their pricing and their terms. None of it is paid to us, and none of these prices are ours to set, hold or guarantee — any of them can change at any time. Check each provider’s current pricing and terms yourself before you rely on it. The figures below are indicative only and were correct at the time of writing.

ServiceWhat it powersRequired?Billed byIndicative cost
PostgreSQL (Neon, Supabase, Amazon RDS or your own server)
The database. The one thing the application genuinely cannot run without
Required
Your provider
Neon’s free tier is enough to start; paid tiers priced by that provider
Application hosting (Vercel, a VPS, your own Docker host)
Running the app itself
Required
Your host
Varies. A small VPS is enough; Vercel has a free tier with its own limits
Stripe
Card payments on invoices, from the staff app and the client portal
Optional
Stripe
No monthly fee, but a per-transaction fee on every payment your customers make, set by Stripe and varying by country and card type. A Stripe account and their identity checks are yours to complete
Cloudflare R2
File attachments, employee documents, expense receipts, product images
Optional
Cloudflare
Around $0.015/GB/month with no egress fee, above a free monthly allowance
An SMTP provider
Outbound email — invoices, receipts, password resets, ticket replies
Optional
Your provider
Usually priced by volume above a free tier. Any provider that speaks SMTP works, including one you already pay for
Inngest
The schedule — recurring invoices, overdue chasing, inbound mail polling, SLA breach notices, report rebuilds
Optional
Inngest
Free up to a monthly step allowance, billed beyond it. No account is needed in development
Google / Microsoft sign-in
The optional OAuth buttons on the staff sign-in screen
Optional
Google / Microsoft
Free to configure for ordinary use, but each requires a developer account, and some Microsoft Entra directory features are only available on paid Microsoft plans
Firebase Cloud Messaging
Mobile push transport
Optional
Google
Free at the volumes this application produces. Requires a Google Cloud project
Apple / Google developer accounts
Publishing the Flutter app to the App Store or Google Play
Optional
Apple / Google
Apple charges an annual fee; Google a one-off registration fee. Neither is needed to build the app or side-load it

What this means in practice

  • You can run the whole product on a database and nothing else. Every optional integration above is unset by default, and the feature it powers switches itself off with a message rather than erroring. Integrations matrix says exactly what each one does when it is not configured.
  • Nothing signs you up for anything. There is no bundled account, no telemetry endpoint and no phone-home. Email is plain SMTP so you can point it at whatever you already have.
  • Stripe’s fee is charged to you, not to us, and it is per transaction. If you are reselling workspaces, model that fee before you set your own prices.
  • If you resell access to your customers, the costs above are yours to carry and to price into whatever you charge them. Envato’s Extended License is the one that covers charging your end users.
10

Payments

Stripe is implemented behind a gateway abstraction. Credentials are per tenant and are not environment variables — each workspace configures its own Stripe account in the app, so a reseller’s clients each take their own money.

To configure a tenant’s gateway

  1. 01
    Set ENCRYPTION_KEY first. Gateway secrets are stored encrypted at rest, and without the key the save is refused rather than stored in the clear.
  2. 02
    Sign in to the tenant’s staff app as an owner or administrator, and open payment settings.
  3. 03
    Enter the Stripe secret key, publishable key and webhook signing secret, and set whether the configuration is live or test mode.
  4. 04
    In the Stripe dashboard, add a webhook endpoint pointed at the URL the settings screen shows you. Each tenant gets its own opaque webhook key in the path, so one tenant’s deliveries can never settle another’s invoice.

What the webhook layer guarantees

  • Signature verification against the tenant’s own signing secret. A tampered body, an unsigned delivery, a wrong secret or a replayed captured delivery are all rejected.
  • Replay safety. Deliveries are claimed by (tenant, provider, event id), so one event delivered twice produces one payment and one receipt.
  • Mode matching. A test-mode event is ignored by a live-mode configuration.
  • Currency matching. A payment in the wrong currency is refused and recorded as failed rather than silently accepted.
  • Overpayment and partial payment are both recorded accurately; refunds reopen the balance and never refund twice on redelivery.

When an invoice settles, one function fans out the consequences: the receipt email is queued, stock is decremented for any product lines, and the journal entry is posted. Any new settlement path must end with that same call rather than reimplementing the steps.

Warning
One gateway ships. PayPal, Paddle, Razorpay and Mollie are not implemented. The abstraction they would slot into exists — a provider is a row in payment_gateways and an implementation of the gateway interface — but the implementations do not.
11

Files and media

Attachments use Cloudflare R2, which speaks the S3 API. Set the four variables from Integrations matrix and the feature switches itself on.

How an upload works

  1. 01
    The client asks the server for a presigned PUT URL. The server checks the caller’s permission and their permission on the record being attached to, then mints a URL under tenants/{tenantId}/.
  2. 02
    The browser or the app uploads directly to R2. Bytes never pass through your application server, so there is no request-body limit and no per-second billing meter on the transfer.
  3. 03
    The server then validates the stored object by magic bytes, not file extension, and quarantines anything whose real type does not match what was declared.
  4. 04
    Downloads are freshly signed, short-lived URLs minted only after a server-side permission check. Nothing is ever public and there is no permanent URL.

The second permission layer

A caller holding file permissions at the widest scope still cannot list, download or delete a file hanging off a record they may not open, and cannot attach one to it either. Each attachable module registers its table, the permission that governs reading it, and the column its scopes filter on. A module that is not registered is refused by construction — its attachment panel renders empty rather than the boundary silently not being there.

Cost: R2 has no egress fees; storage is roughly $0.015/GB/month.

12

Email

Outbound

Plain SMTP via nodemailer. The SMTP_* variables are the platform defaults, used for signup, password reset and platform notices. Each tenant can configure its own SMTP in company settings for its own outbound mail; the tenant’s setting takes precedence and the platform values are the fallback.

Everything sent goes through one outbox queue, so a delivery failure is retried rather than lost, and every module’s mail takes the same path.

Inbound — email to ticket

Configured per tenant in the app, not in environment variables. IMAP polling by default, with a documented adapter interface if you would rather use a webhook provider. A shared platform inbox is deliberately not offered — it would file one tenant’s customer replies against another tenant’s contacts.

Routing: a ticket reference in the subject line finds its ticket; failing that, In-Reply-To finds one. A reference the tenant has no ticket for — an invoice number a customer forwarded — opens a new ticket rather than reaching for a near match. Messages are de-duplicated, machine-generated mail is filed but never acknowledged, and a reference quoting another tenant’s ticket number opens a ticket in the mailbox’s own tenant and puts nothing on the other tenant’s thread.

Note
Storing a tenant’s SMTP or IMAP password requires ENCRYPTION_KEY. Without it the save is refused — the product never stores a credential in the clear.
13

Scheduled jobs

Warning

The schedule lives in Inngest, not in this application. Inngest calls the app on a cron, not the other way round. Without a connected Inngest app, nothing scheduled runs by itself: no recurring invoices raised, no overdue chasing, no inbound mail polled, no SLA breach notified, no report pre-aggregate rebuilt.

Nothing breaks and no figure is wrong. Every screen that depends on one of those jobs has a manual button (“run due schedules”, “rebuild now”, “check for breaches now”), every report states when it was last built, and support-desk SLA state is computed on read so it is correct with nothing running at all. But an unattended install without Inngest is an install where nobody chases an invoice.

In development

No account and no keys. Run this in a second terminal and it discovers the app on its own:

terminal
npx inngest-cli@latest dev

In production

  1. 01
    Create an Inngest app pointed at https://<your-host>/api/inngest.
  2. 02
    Set INNGEST_EVENT_KEY (dashboard → Manage → Event Keys) and INNGEST_SIGNING_KEY (dashboard → Manage → Signing Key, which authenticates Inngest’s calls in).
  3. 03
    Redeploy, then confirm the app shows your functions as synced.

The four cadences

Four cron dispatchers wake up, list the workspaces that are not suspended, and send one event per workspace per job — so a slow or broken workspace never holds up another.

CadenceDefaultWhat runsOverride
Every 5 minutes
*/5 * * * *
Inbound mail, and the outbox safety net
INNGEST_CRON_EVERY_5_MIN
Every 15 minutes
*/15 * * * *
SLA breach notifications, activity reminders
INNGEST_CRON_EVERY_15_MIN
Hourly
20 * * * *
Report pre-aggregates — CRM, projects, billing, HR, accounting
INNGEST_CRON_HOURLY
Daily
30 3 * * *
Recurring invoices, overdue chasing, idle-deal automations, three housekeeping sweeps
INNGEST_CRON_DAILY

Standard five-field cron, in UTC. Inngest also accepts a TZ= prefix, which is what to use for anything a person notices the time of:

.env
INNGEST_CRON_DAILY=TZ=Europe/London 30 6 * * *

A malformed value is refused at boot with a message naming the variable — it does not silently fall back, because a schedule that ignores its own configuration is worse than one that never started.

Cost

Inngest’s free tier covers 50,000 steps per month. The default cadences fan out roughly 606 events per tenant per day (about 18,500 a month), and each event is one to two steps — so the free tier comfortably covers one workspace and is tight for two. Slowing the five-minute dispatcher is the first thing to reach for; it is the single biggest cost line. .env.example carries the arithmetic.

14

Push notifications

Warning
Status: transport registered, sender not implemented. This is stated plainly because it is the kind of gap that otherwise turns into a support ticket.

What is built:

  • The Flutter app integrates firebase_messaging, requests permission, obtains a device token and handles an incoming message, including resolving a deep link to the right screen.
  • The API accepts and stores device tokens — POST and DELETE /api/v1/devices/push-tokens — in a tenant-scoped table.
  • In-app notifications work fully on both clients: they are created, listed, marked read and cleared, and they carry a subject/destination pair so a notification opens the screen that actually renders its subject.

What is not built: the server-side dispatcher. FCM_SERVICE_ACCOUNT_JSON is declared and validated in apps/web/src/env.ts, but no code consumes it — nothing calls the FCM API, so no push message is ever delivered, whether the variable is set or not.

To finish it you would add a sender that reads the service account, mints a Google OAuth token, and posts to the FCM v1 endpoint for each stored device token — then call it from the notification creation path alongside the in-app row. The tokens, the tenant scoping and the deep-link payload shape are already in place.

Neither google-services.json nor GoogleService-Info.plist ships in the package, deliberately — they are your Firebase project’s files. Add them under apps/mobile/android/app/ and apps/mobile/ios/Runner/ respectively.

15

The Flutter app

Display name
Pipely
Android application ID
dev.devsnack.pipely
iOS bundle name
Pipely
Android minSdk
24 (Android 7.0)
Android compileSdk
37
Flutter SDK
^3.12.2

Pointing it at your backend

The only thing the app needs to be told is where its own backend is. No third-party key lives in the app — Stripe, R2, SMTP and FCM credentials are all server-side, because anything in an APK can be extracted with strings.

terminal
cd apps/mobile
flutter pub get

# Copy the template and set your origin.
cp dart_define.example.json dart_define.json

flutter run --dart-define-from-file=dart_define.json

PIPELY_API_BASE_URL is the origin of the Next.js app — no trailing slash and no /api/v1 suffix, which the app appends itself.

Warning

It must be a tenant host, never the apex. https://acme.pipely.app is right; https://pipely.app is not, and sign-in will be refused outright.

The tenant is the hostname. There is no workspace field on the sign-in screen and there will not be one: the server resolves the tenant from the Host header and from nothing else. A tenant field would hand an attacker a single endpoint from which to spray credentials at every workspace on the deployment, and would make account enumeration across tenants one request. A picker on the client would be that same endpoint wearing a dropdown.

What that costs. PIPELY_API_BASE_URL is compile-time, so one build talks to exactly one workspace. That is right for a company running Pipely for itself. A buyer reselling to many client companies needs a build per customer until a runtime workspace step exists — their staff can use the web app, which has no such constraint, in the meantime.

Note
Emulator addressing. In a debug build with nothing set, the app falls back to http://10.0.2.2:3000 on Android (the emulator’s route to the host loopback) and http://localhost:3000 elsewhere, so a fresh clone runs with no arguments. A release build throws at startup if the variable is missing, and refuses a plaintext http:// origin — shipping a release pointed at a developer’s laptop is worse than failing to start.

Offline scope — deliberately narrow

Drift caches reads for contacts, deals, tasks and today’s schedule. The write queue covers exactly attendance clock-in, task status, time entries and activity logging.

Invoices, stock levels and the ledger are online-only, on purpose. A stock level or a ledger balance cached on a phone is a wrong number waiting to be read, so those screens refuse rather than showing something stale — and say so.

Commands

terminal
flutter analyze                      # static analysis — must be clean
flutter test                         # unit and widget tests
dart run build_runner build          # after changing a model
flutter gen-l10n                     # after adding an ARB string

flutter build apk --release --dart-define-from-file=dart_define.json
flutter build appbundle --release --dart-define-from-file=dart_define.json
flutter build ipa --release --dart-define-from-file=dart_define.json

Both platform builds are supported. The Android debug build is the one exercised most during development, so budget the usual signing and provisioning time for your first iOS build.

16

Branding and customisation

The mark

assets/brand/pipely-mark.svg is the master mark and the single source for every icon in the product — the web favicon, the PWA icons, the Android and iOS launcher icons and the in-app logo on both clients. pipely-mark-mono.svg is the same geometry filled with currentColor for single-colour contexts.

To rebrand:

  1. 01
    Replace assets/brand/pipely-mark.svg with your own mark, keeping the corner radius proportional (14 on a 64 viewBox, about 22%) so it sits correctly beside an iOS squircle and inside an Android adaptive-icon mask.
  2. 02
    Keep the bars inside the Android safe zone — the mask can clip to a circle of 66% of the canvas, so a straight export gets the ends clipped.
  3. 03
    Regenerate every raster: node tool/generate_app_icons.mjs from apps/mobile. Output is committed, so a buyer who clones gets a branded app without running anything.
  4. 04
    Replace apps/web/src/app/icon.svg, favicon.ico and apple-icon.png.

The wordmark beside the mark is live text in Hanken Grotesk — never re-typeset it as an image, or it stops being selectable and translatable.

Theme tokens

Colour, type and radius live as tokens in apps/web/src/app/globals.css and a matching Flutter theme extension. Components consume the tokens; there are no ad-hoc hex values or inline text styles to hunt down. Change a token and both clients follow.

RoleTokenValue
Primary — CRM, core actions, system authority
--color-primary
#3525cd (indigo)
Secondary — HRM and people-centric data
--color-secondary
#006a61 (teal)
Surface
--color-surface
#faf8ff
On surface
--color-on-surface
#131b2e
Error
--color-error
#ba1a1a

Typography: Hanken Grotesk for headlines with tight tracking at large sizes, Inter for body, and Geist for labels, metadata and numeric table data. Radii are 0.5rem for standard UI, 1rem for bento cards, and fully rounded for status pills.

Per-tenant white label

Each tenant sets its own primary colour and logo, which the client portal renders — so your customer’s customer sees your customer’s brand. The “powered by” credit is a per-tenant toggle.

Adding a module or a field

  • Navigation is declarative. Add a module to apps/web/src/lib/navigation/admin-nav.ts and nowhere else; it is filtered server-side by permission and by the tenant’s plan.
  • A new tenant table needs three things: a non-nullable tenant_id column, an entry in TENANT_TABLES in apps/web/src/db/schema/index.ts, and an RLS policy in a new migration. Miss one and the isolation suite fails naming the table.
  • Custom fields need no code. They are a cross-cutting system, definable per entity type from the settings UI.
  • Migrations are additive. Generate with pnpm db:generate; never edit a migration that has been applied.

Localisation

The UI is English only in v1, but no user-facing string is hardcoded. Web strings live in apps/web/messages/en.json (next-intl); mobile strings live in apps/mobile/lib/l10n/app_en.arb. Adding a language is a translation file plus a locale registration, not a refactor. Run flutter gen-l10n after editing the ARB.

Right-to-left layouts have not been exercised. Currency and date formatting are already locale-aware and follow the tenant’s configured locale and timezone rather than the device’s or the server’s.

17

Production checklist

  1. 01
    Set DATABASE_URL_OWNER. Enable the pipely_app role with ALTER ROLE pipely_app WITH LOGIN PASSWORD '…', put it in DATABASE_URL, and the owner in DATABASE_URL_OWNER. Without this, row-level security is off. Verify with pnpm test:isolation, which reports the posture on every run.
  2. 02
    Generate a fresh AUTH_SECRET — openssl rand -base64 48. Never reuse the development value.
  3. 03
    Set ENCRYPTION_KEY — openssl rand -base64 32. Required before any tenant can save SMTP, IMAP or payment gateway credentials. Treat it like AUTH_SECRET: changing it makes every already-stored secret unreadable.
  4. 04
    Set APP_APEX_DOMAIN and APP_PLATFORM_HOST before the build, and rebuild after any change. Set APP_PROTOCOL=https.
  5. 05
    Point a wildcard DNS record at the app — *.yourdomain.com — or no tenant is reachable.
  6. 06
    Apply migrations deliberately with pnpm db:migrate, from your machine or a one-off job. Not from a build step.
  7. 07
    Do not run pnpm db:seed against production. Provision your first tenant through signup on the apex domain.
  8. 08
    Connect Inngest and set both keys, or accept that nothing recurring runs. Confirm the functions show as synced.
  9. 09
    Configure R2 if you want file attachments, and keep R2_SIGNED_URL_TTL_SECONDS short.
  10. 10
    Configure SMTP — at minimum the platform defaults, so password reset works.
  11. 11
    Configure each tenant’s Stripe keys in-app and register the per-tenant webhook endpoint in the Stripe dashboard. Confirm live/test mode matches.
  12. 12
    Change every seeded password if you seeded anything, and delete demo tenants you do not want.
  13. 13
    Run the gates: pnpm test:ci must pass, pnpm build must exit clean, and flutter analyze must report no issues.
  14. 14
    Set DATABASE_POOL_MAX to suit your platform — lower it on serverless, where many instances share one database.
  15. 15
    Review TENANT_CACHE_TTL_SECONDS. Raising it cuts database reads; lowering it makes a newly provisioned tenant resolve sooner.
18

Known limitations

Named here rather than discovered later. These are deliberate scope decisions or honest gaps, not a roadmap with dates.

Not built

  • No SaaS billing layer. Plans exist and gate which modules a tenant sees, and signup provisions a real tenant — but there is no subscription lifecycle: no trial expiry, no dunning, no seat or storage enforcement. If you intend to resell subscriptions, you are building that part.
  • The super-admin console is one page. The (platform) route group, the schema and the host routing are in place; the screens are not.
  • There are no staff or role management screens. The permission system itself is complete and enforced — module.action grants, three scopes, seven seeded roles, checked server-side on every action and route — but /settings/staff and /settings/roles do not exist and appear in the sidebar as disabled Soon rows. The only staff account a workspace gets is the owner created at signup; adding a colleague, changing somebody’s role, or editing a role’s grants is a database operation today. If you are running this for more than one person, this is the first screen you will want to build, and the model underneath it is already there.
  • One payment gateway. Stripe, behind an abstraction. PayPal, Paddle, Razorpay and Mollie are not implemented.
  • TOTP two-factor authentication is schema only. The totp_secret and totp_enabled_at columns exist on both the staff and super-admin tables, and the audit log already redacts the secret — but there is no enrolment, no verification and no TOTP library in the dependency tree. Do not advertise 2FA to your users until you build it.
  • Server-side push is not implemented. Device tokens are registered and stored and the app handles an incoming message, but nothing dispatches one. See Push notifications.
  • No guided web installer. Install is the documented command sequence, or Docker.
  • Per-tenant API keys are not built. /api/v1 authenticates with bearer tokens issued to a user session; there is no separate machine credential.
  • The mobile app is one build per workspace. The backend URL is compile-time and must be a tenant host, because the tenant is resolved from the Host header — a deliberate security decision, explained in The Flutter app. A reseller with many client companies needs a build per customer until a runtime workspace step exists.

Deliberately out of scope, and staying that way

  • Statutory payroll tax calculation for any jurisdiction. This is a payroll engine: you define the earnings and deduction components. It will not file your returns or calculate your PAYE.
  • Accounting compliance. The accounting module exists to make the other six modules add up, not to replace an accounting package. No period lock, no closing run, no multi-currency journal, and no cost of goods sold.
  • Multi-language UI in v1. English ships; the catalogues are ready for more.
  • Offline editing on mobile beyond the four cached reads and four queued write types. Extending the queue to invoices or stock is a correctness problem, not a feature.

Mobile gaps, specifically

All seven modules are operable from the phone and no placeholder screen remains. These four narrower gaps are real and worth knowing:

  • Expense rebilling has no dedicated screen. It creates an invoice and answers with an invoice detail, so it belongs on the invoicing tab rather than the expenses one.
  • Ticket detail and expense category rows omit their custom-field and account labels, so the client joins them rather than the server sending them.
  • Three ticket operations have no /api/v1 route and are therefore web-only.
  • Payroll-run notifications cannot resolve a deep link, because no mobile route addresses a payroll run.
19

Changelog

Every version published so far. Updates are free for the life of the item.

v1.0.0 · Sep 2026
  • Initial release: seven modules — CRM, projects, invoicing, HRM, support tickets, inventory and accounting — on both the web app and the Flutter app.
  • Three surfaces on one Next.js application: marketing and signup, the tenant staff app, and the client portal.
  • Multi-tenancy in three layers, with a fourth inside the client portal. 106 tenant tables, 51 migrations, row-level security on every one.
  • Auth.js v5 with Argon2id, seven seeded roles, scoped permissions, optional Google and Microsoft OAuth.
  • /api/v1 with bearer and refresh authentication, and Idempotency-Key on every mutation.
  • Cross-cutting custom fields, tagging, audit log, attachments, comments and notifications.
  • Stripe payments with signed per-tenant webhooks, refunds, credit notes and receipts.
  • Cloudflare R2 uploads with magic-byte validation and signed expiring downloads.
  • Inngest scheduler with four configurable cron cadences.
  • Docker and Vercel deployment paths; demo seed with two complete workspaces.
20

Support and licensing

Six months of item support is included with your purchase, per the CodeCanyon standard. That covers bug fixes, answering questions about the code as shipped, and help with the documented setup path.

Please include your Envato purchase code, the version you are on, and the exact error text or a screenshot. It roughly halves the round trips.

What support covers

  • Six months of support from purchase, extendable at checkout
  • Support covers bugs in the template and questions about how it is put together
  • It does not cover custom feature work, third-party API changes or store review outcomes
  • The Regular licence covers one free end product. Charging users for the app itself needs the Extended licence

What it does not cover

  • Installing or hosting the application for you.
  • Customisation, new features, or building the gaps named in Known limitations.
  • Writing your jurisdiction’s payroll tax rules.
  • Supplying third-party accounts — your database, domain, Stripe, R2, SMTP and Firebase accounts are yours. We provide the setup walkthroughs, not the accounts.

Licensing

Your use of this source is governed by the Envato licence you purchased it under. A Regular License covers a single end product that is free to its end users. An Extended License is required if your end users are charged — which includes reselling workspaces as a subscription, the main commercial use of this item.
